dashcam parking sensor with buzzer front rear parking sensor for metal bumper ultrasonic trailer truck parking sensor

Category:

dashcam parking sensor with buzzer front rear parking sensor for metal bumper ultrasonic trailer truck parking sensor

Big Truck MEANS WIDE WIDE BLIND SPOT !!!

About us

Price just for reference.pls give us your details request, we will quote you exactly

Features:
  • Automotive OEM standard product designed for commercial vehicle;
  • Wide detection angle with minimal blind area and more than 3m detection distance
  • The triangulation technology makes the detection more accurate
  • High sensitivity active sensors can be installed in metal or plastic bumper
  • Topological structure harness and easy extension for different length vehicles
  • Workable under very sophisticated weather conditions
  • Can bus technology, fast response
Application:
Heavy truck;
Large bus;
Specialty vehicles;

1. 8 sensor system, double CPU and advanced chipset for enhanced coverage and detection (0-3m).

2. With digital colored LED display, show the distance and the direction between your car and the back obstruction.

3. LED display indicates Right, Middle and Left.

4. Help to prevent dangerous and costly collisions.

5. Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle.

6. Detect small children and low walls as well.

7. A all weather working system, rain-proof and anti-freeze.

Easy to install.

8. A saw drill head included.

Main ECU:
Rated voltage: 12V or 24V (customized);
OEM standard waterproof connector;
Waterproof level IP67;
Housing Material: Metal
dashcam parking sensor with buzzer
dashcam parking sensor with buzzer

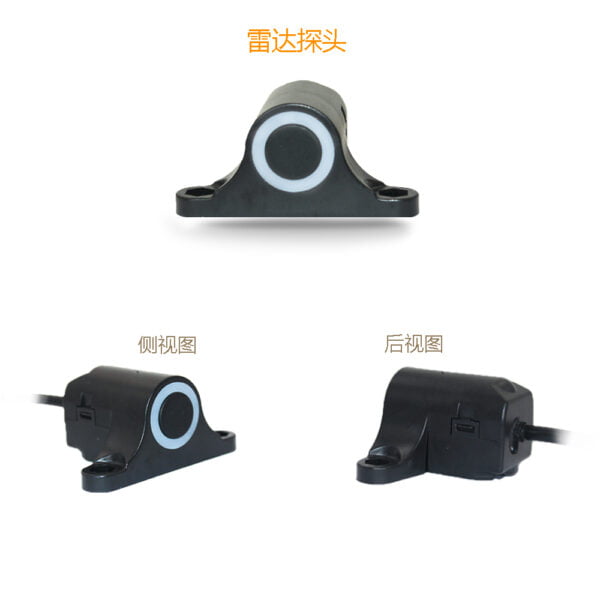

BSA sensor

  • Built-in amplifier and processing circuit, High reliability and anti interference;
  • High sensitivity & interchangeability;
  • Waterproof level IP67.
  • Sensor with rubber sleeve & bracket, Can be installed on metal bumper;
dashcam parking sensor with buzzer
dashcam parking sensor with buzzer
dashcam parking sensor with buzzer
dashcam parking sensor with buzzer

Product Composition:
Main ECU: x1
Warning ECU: x1
LED Display Unit: x1
BSA Sensor: x3/4/5/6/7/8 ……(optional)
Harness: x1 set
Warning light: x1 pair
Optional parts: GPS MODULE
Installation instruction:
Installation height: 0.7-0.9m
Installation gap between sensors: show as below
