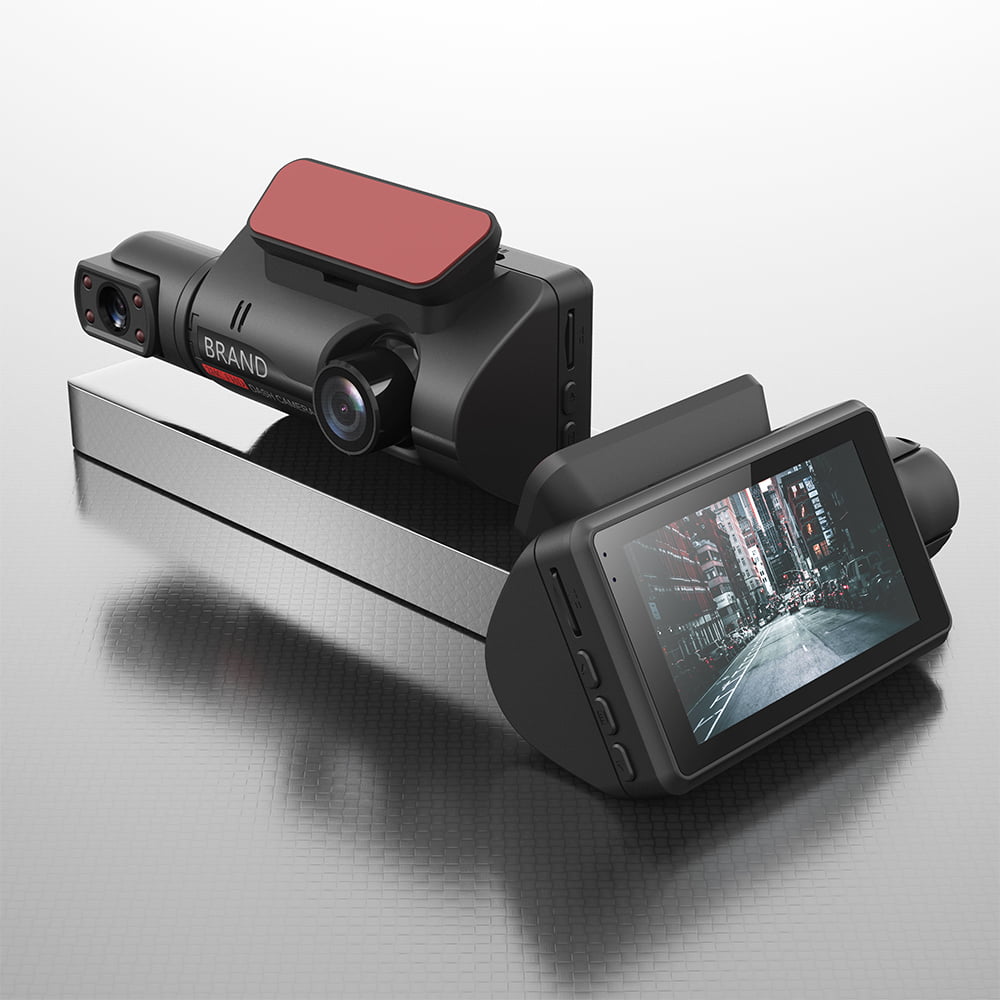

Zimtop Car Dash Camera Full HD Car Black Box For Car DVR Camera factory Dual Lens Dashcam with WIFI Function
Why Choose Us
- Alibaba Top Seller
- MOQ 100pcs Make Your Own Brand
- 12 Month Warranty
Zimtop Car Dash Camera Full HD Car Black Box For Car DVR Camera factory Dual Lens Dashcam with WIFI Function
Zimtop Car Dash Camera Full HD Car Black Box For Car DVR Camera factory Dual Lens Dashcam with WIFI Function
`Main control processor JL5601
Display 3’IPS display 320*240
Front camera module Imaging chip 2363
Aperture 1.6
Viewing angle D: 142° H: 125° V: 65°
Lens specification 6G
Rear camera module Imaging chip SONY 335_ETH
Aperture 1.8
Viewing angle D: 135° H: 110° V: 65°
Lens specification 6G
Speaker 8Ω/1W speaker oval 20*14mm
MIC Microphone 4015 standard omnidirectional microphone -42dB
Expansion memory U3 or above MICRO SD supports up to 256GB
WIFI optional, optional built-in 8918_2.4GWIFI module
GPS module optional, optional external GPS module, support dedicated player
Video resolution Front 2K 2560*1440P/30fps, 4K difference possible
Rear FHD 1920*1080/30fps, the difference can be 2K
Video format H.265/H.264 encoding format
Photo format JPG
Reversing camera support
Video lock support
Parking monitoring support
Time-lapse video support
Track playback Support dedicated player, real-time track, etc.
WDR support
Language Support multiple languages, English/French/Spanish/Portuguese/Polish/Chinese/Russian/Japanese, etc.
Working status light Recording light and power light
Battery Optional battery & capacitor
Keys Power key, Menu key, Up key, Down key, Confirm key, Reset key
Power supply mode Standard car charger, optional step-down line
Power input DC 5V 2.5A
Interface MINI USB (5V power supply/GPS interface), MICRO SD (memory card), TYPE-C (ETH back pull),
Bracket Standard (suction cup bracket)
Temperature Operating temperature: -10℃ — +60℃ (non-condensing) Storage temperature: -20℃ — +80℃ (non-condensing)
Display 3’IPS display 320*240
Front camera module Imaging chip 2363
Aperture 1.6
Viewing angle D: 142° H: 125° V: 65°
Lens specification 6G
Rear camera module Imaging chip SONY 335_ETH
Aperture 1.8
Viewing angle D: 135° H: 110° V: 65°
Lens specification 6G
Speaker 8Ω/1W speaker oval 20*14mm
MIC Microphone 4015 standard omnidirectional microphone -42dB
Expansion memory U3 or above MICRO SD supports up to 256GB
WIFI optional, optional built-in 8918_2.4GWIFI module
GPS module optional, optional external GPS module, support dedicated player
Video resolution Front 2K 2560*1440P/30fps, 4K difference possible
Rear FHD 1920*1080/30fps, the difference can be 2K
Video format H.265/H.264 encoding format
Photo format JPG
Reversing camera support
Video lock support
Parking monitoring support
Time-lapse video support
Track playback Support dedicated player, real-time track, etc.
WDR support
Language Support multiple languages, English/French/Spanish/Portuguese/Polish/Chinese/Russian/Japanese, etc.
Working status light Recording light and power light
Battery Optional battery & capacitor
Keys Power key, Menu key, Up key, Down key, Confirm key, Reset key
Power supply mode Standard car charger, optional step-down line
Power input DC 5V 2.5A
Interface MINI USB (5V power supply/GPS interface), MICRO SD (memory card), TYPE-C (ETH back pull),
Bracket Standard (suction cup bracket)
Temperature Operating temperature: -10℃ — +60℃ (non-condensing) Storage temperature: -20℃ — +80℃ (non-condensing)
Product Description
Specification
Chipset | JL5601 |
Screen Type | IPS, |
Screen Size | 3″ |
Angle | 170° |
Resolution | 1080 |
Function | FULL COLOR, Emergency Accident Lock, Waterproof, Build-in Battery, Loop recording, park MODE |
Voltage | 12-24v |
Working Temperature Range | -20℃ – 65℃ |
Wifi | support |
Battery | 200mha |
Multi-language | Support |
Lens | Dual |
Engine | Universal |
